Technology GSM / CDMA / HSPA / EVDO / LTE / 5G
Launch
Announced 2023, September 12
Status Available. Released 2023, September 22
Body
Dimensions 146.6 x 70.6 x 8.3 mm (5.77 x 2.78 x 0.33 in)
Weight 187 g (6.60 oz)
Build Glass front, glass back, titanium frame (grade 5)
SIM Nano-SIM + eSIM + eSIM (max 2 at a time; International)
eSIM + eSIM (8 or more, max 2 at a time; USA)
Nano-SIM + Nano-SIM (China)
IP68 dust tight and water resistant (immersible up to 6m for 30 min)
Apple Pay (Visa, MasterCard, AMEX certified)
Display
Type LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 2000 nits (HBM)
Size 6.1 inches, 91.3 cm2 (~88.2% screen-to-body ratio)
Resolution 1179 x 2556 pixels, 19.5:9 ratio (~461 ppi density)
Protection Ceramic Shield glass
Always-On display
Platform
OS iOS 17, upgradable to iOS 18.3.1
Chipset Apple A17 Pro (3 nm)
CPU Hexa-core (2x3.78 GHz + 4x2.11 GHz)
GPU Apple GPU (6-core graphics)
Memory
Card slot No
Internal 128GB 8GB RAM, 256GB 8GB RAM, 512GB 8GB RAM, 1TB 8GB RAM
NVMe
Main Camera
Triple 48 MP, f/1.8, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS
12 MP, f/2.8, 77mm (telephoto), 1/3.5", 1.0µm, PDAF, OIS, 3x optical zoom
12 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55", 1.4µm, dual pixel PDAF
TOF 3D LiDAR scanner (depth)
Features Dual-LED dual-tone flash, HDR (photo/panorama)
Video 4K@24/25/30/60fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, 3D (spatial) video, stereo sound rec.
Selfie Camera
Single 12 MP, f/1.9, 23mm (wide), 1/3.6", 1.0µm, PDAF, OIS
SL 3D, (depth/biometrics sensor)
Features HDR, Dolby Vision HDR
Video 4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS
Sound
Loudspeaker Yes, with stereo speakers
3.5mm jack No
Comms
WLAN Wi-Fi 802.11 a/b/g/n/ac/6e, tri-band, hotspot
Bluetooth 5.3, A2DP, LE
Positioning GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS, NavIC
NFC Yes
Radio No
USB USB Type-C 3.2 Gen 2, DisplayPort
Features
Sensors Face ID, accelerometer, gyro, proximity, compass, barometer
Ultra Wideband (UWB) support (gen2 chip)
Emergency SOS, Messages and Find My via satellite
Battery
Type Li-Ion 3274 mAh
Charging Wired, PD2.0, 50% in 30 min
15W wireless (MagSafe)
15W wireless (Qi2) - requires iOS 17.2 update
4.5W reverse wired
Misc

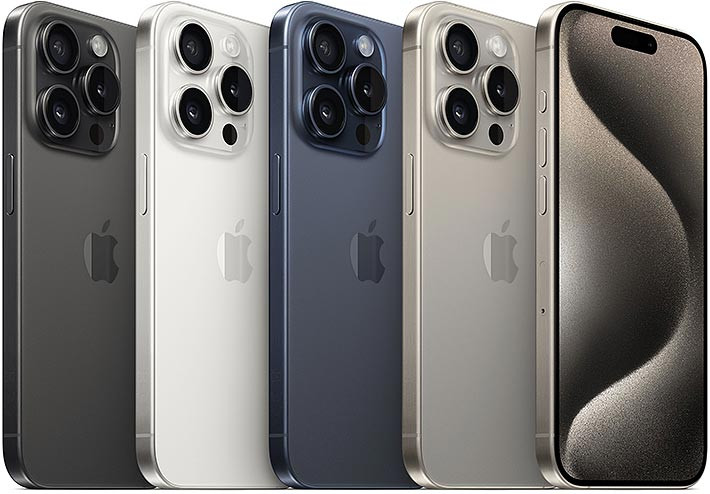

Colors Black Titanium, White Titanium, Blue Titanium, Natural Titanium
Models A2848, A3101, A3102, A3104, iPhone16,1
SAR 1.14 W/kg (head) 1.16 W/kg (body)
SAR EU 0.98 W/kg (head) 0.98 W/kg (body)
