Details

Vehicle Type

Off Road Bike

Bike Type

Dual Purpose

Series

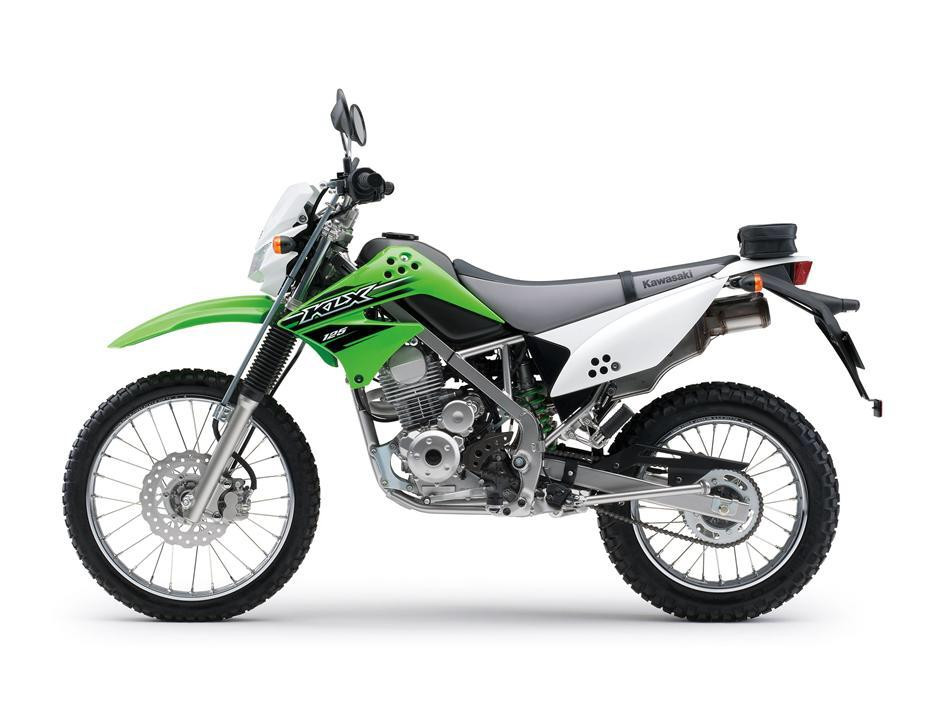

KLX

Model Code

KLX150KRFNN

Configuration

144cc, 4-stroke. Air cooled, 2-valve, SOHC, 1-cyl

LAMS Approved

True

Colours

Lime Green

Ride Away Price

False

Grey Import

False

Is Limited Edition

False

Vehicle Class

Trail (0 - 250cc)

Engine

Engine Description

150

Generic Engine Config

Single

Engine Config

Vertical

Engine Capacity

144cc

Engine Type

Piston

Engine Stroke

4

Bore

58.0mm

Stroke

54.4mm

Cam Type

SOHC (Single Over Head Cam)

Cylinders

1

Valves Per Cylinder

2

Compression Ratio

9.5:1

Induction System

Aspirated

Carburettor(s)

1

Carburettor

Keihin NCV24

Throttle Bore

24mm

Cooling

Air

Lubrication

Wet Sump; Forced Lubrication

Exhaust Config

1 Into 1

Maximum Power

8.6kW

Maximum Power RPM

8000

Maximum Torque

11Nm

Maximum Torque RPM

6500

Start

Ignition

Digital

Ignition Description

DC-CDI

Starter

Electric & Kick

Electrics

Engine Voltage

12Volt

Charging Method

Alternator & Regulator-Rectifier

Fuel & Emissions

Fuel Type

Petrol

Recommended RON

91

Fuel Tank Capacity

6.9L

Emission Standard

Euro 3

Transmission

Transmission Description

Return shift

Primary Drive

Ratio 2.880 (72/25)

Generic Drive Type

Chain

Drive Type

Chain

Final Drive Ratio

3.714 (52/14)

Generic Gear Type

Manual

Gear Type

Manual

Gear Number

5

Gear Change Method

Left foot lever

1st Gear Ratio

2.917

2nd Gear Ratio

2.000

3rd Gear Ratio

1.474

4th Gear Ratio

1.182

5th Gear Ratio

1.000

Clutch Type

Wet, Multi-disc

Chassis & Suspension

Frame Material

Box section high tensile steel

Frame Design

Perimeter

Rake (Caster Angle)

27.00degrees

Trail

109.6mm

Side Stand

Standard

Skid Plate

Not Available

Front Suspension

Upside down/Inverted telescopic fork; Lower leg protectors

Front Suspension Travel

175.0mm

Rear Suspension

Uni-trak; Single pressurised nitrogen shock absorber; 5-way spring preload adjustment

Rear Suspension Travel

192.0mm

Fork Diameter

35.0mm

Swingarm Type

Dual Sided

Brakes

Front Brake Description

Single petal disc; Hydraulic; Sintered pads

Front Brake Caliper(s)

Double Piston

Front Brake Diameter

240.0mm

Rear Brake Description

Single petal disc; Hydraulic; Sintered pads

Rear Brake Caliper(s)

Single Piston

Rear Brake Diameter

190.0mm

ABS

Not Available

Linked Braking System

Not Available

Wheels & Tyres

Wheel Type

Laced-Spokes

Wheel Size Front

21"

Wheel Size Rear

18"

Rear Tyre

4.10-18" (59P)

Front Tyre

2.75-21" (45P)

Dimensions & Weights

Length

2050mm

Width

830mm

Height

1155mm

Wheelbase

1345mm

Ground Clearance

300.0mm

Wet / Operational Weight

118.00kg

Seat Height

865mm

Seating Capacity

2

Turning Radius

2.1m

Warranty & Servicing

Warranty KMs

Unlimited

Warranty in Months from First Registration

24 Months (2 years)

Safety & Security

Traction Control

Not Available

Alarm

Not Available

Instruments & Controls

Instruments / Dash Description

Analogue; Speedometer; Tachometer; Fuel gauge; Turn signal lights

Convenience

Seating Position

Upright

System

Import Percent

100
